Crown의 파워 앰프 XS시리즈는 가격대비 성능면에서 앰프의 새로운 지표가 되고 있습니다.
3종류의 모델로 구성되어 있으며 튼튼한 2U 샤시와 오랜 경험을 통해 탄생한 최고의 디자인과 혁신적인 특징들을 접목시킨 제품입니다.

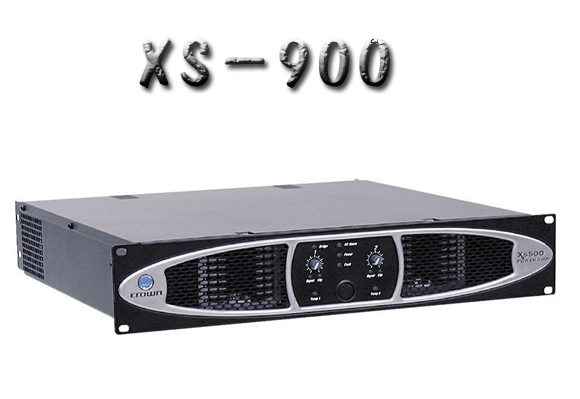

XS시리즈 2채널 모델은 XS-500,XS-700,XS-900 모두 3종류이며 이들은 출력부만 제외하고는 같은 기능을 가지고 있습니다.XS-4300은 4채널 모델입니다.
XS 시리즈는 저렴한 가격대의 고품질 앰프로 현장의 어떤 요구사항도 충족시킬 수 있게 설계된 전문 스테레오 파워 앰프입니다.
상세정보
Performance
Power Output: See power charts above.
Sensitivity (volts RMS) for full rated power at 4 ohms: 1.4V
Frequency Response (at 1 watt): 22 Hz to 22 kHz: ? dB.
Phase Response (degrees at 1 watt, 20 Hz to 20 kHz): +5? ?8?br> Signal-to-Noise Ratio:
A-weighted, below rated power: > 102 dB.
22Hz to 22kHz, below rated power: > 97 dB.
Total Harmonic Distortion (THD) at full bandwidth power, from 20 Hz to 20 kHz: 0.5%.
Intermodulation Distortion (IMD):
(60 Hz and 7 kHz at 4:1) from full rated output to ?0 dB: < 1%.
Damping Factor (8 ohm) 10 Hz to 400 Hz:
> 200.
Crosstalk (below rated power):
Xs500 (1 kHz, 20 kHz): > 55 dB, > 55 dB
Xs700 (1 kHz, 20 kHz): > 55 dB, > 55 dB
Xs900 (1 kHz, 20 kHz): > 67 dB, > 62 dB
Xs1200 (1 kHz, 20 kHz): >65 dB, >45 dB
Xs4300 (1 kHz, 20 kHz): > 57 dB, > 40 dB
Voltage Gain (at maximum level setting):
Xs500: 32:1 (30.1 dB)
Xs700: 38:1 (31.6 dB)
Xs900: 42:1 (32.5 dB)
Xs1200: 47.4:1 (33.5 dB)
Xs4300: 25:1 (27.8 dB)
Load Impedance: Safe with all types of loads.
Xs500, 700, 900, 1200: 2 to 8 ohms in Stereo, 4 to 8 ohms in Bridge Mono.
Xs4300: 4 to 8 ohms in Stereo, 8 ohms in Bridge Mono.
AC Line Voltage and Frequency Configurations Available (?0%): 120VAC/60 Hz and 230VAC/50 Hz.
Controls
Level: Two or four front-panel, gray rotary level controls, one for each channel.
Power: Front-panel switch; on when in the right-hand position. |
|
